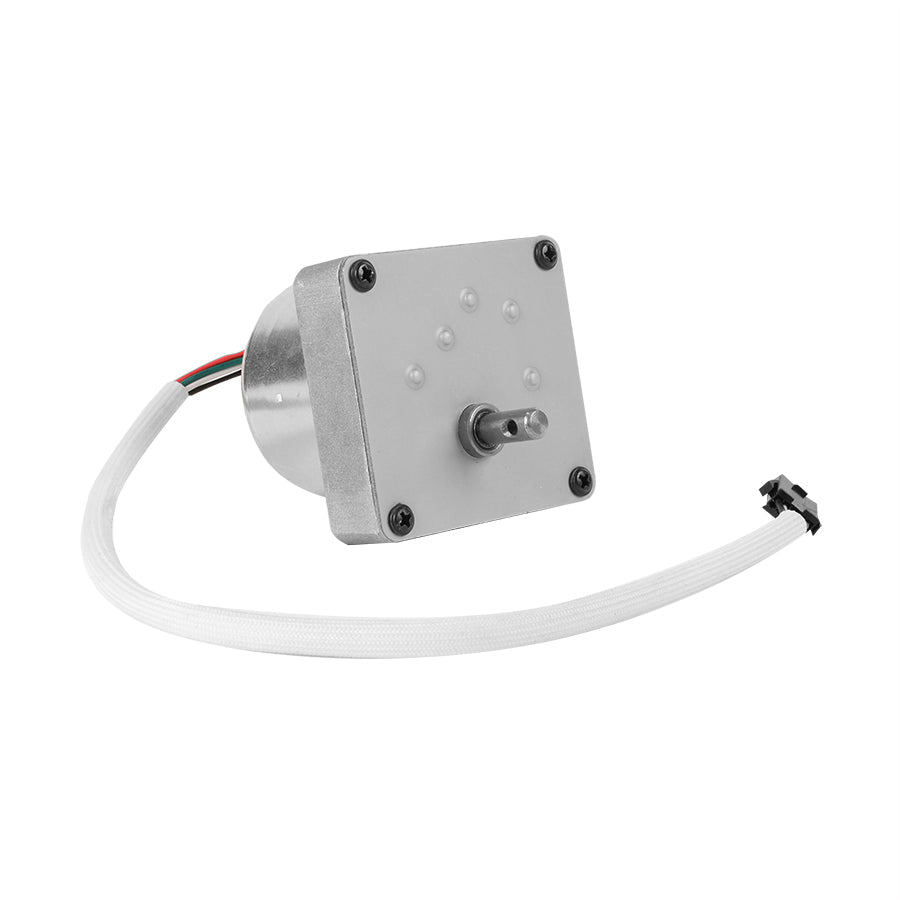

Auger Motor – Pro Series Elite

Auger Motor – 12V DC 4.5 rpm

Keep your grill fueled correctly with just the right amount of pellets for a consistent smoke experience. every time. This replacement auger motor is made specifically for the Pit Boss Pro Series Elite Grills.

Instructions:

1. Unplug your unit from the power supply
2. Remove the service door under the hopper
3. Disconnect the wires of the temperature probe. igniter. fan and motor respectively
4. Remove the setting screw for the ground wire. and then unplug the power cord from the bracket
5. Remove four screws in front and back of hopper. and then remove the hopper completely
6. Remove the screws and auger motor. then replace with the new
7. Reinstall and lock the hopper
8. Pass the power cord through hole 1 and then lock the ground wire
9. Connect the wires and secure them
10. Reinstall the service door under the hopper
