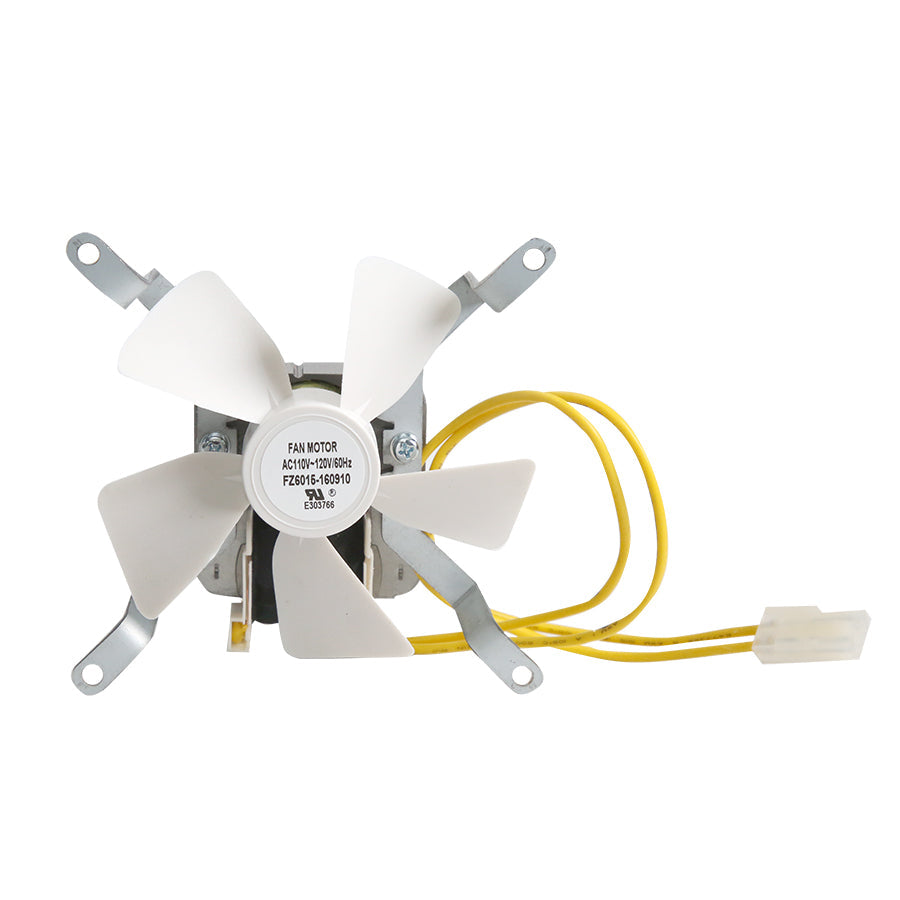

Fan – Combustion/Convection – PB Series

Keep your Pit Boss running at its best with an easy-to-install Fan replacement so you can continue to smoke. roast. bake. sear. braise and more — all from one machine. Your grill’s fan is responsible for distributing air and circulating that precious wood-fired smoke. helping you craft award-winning BBQ right from your backyard.

• Compatible with all AC powered Pit Boss pellet grills & smokers (excluding the Lockhart & PB150 pellet grill)
• Easy to install

Instructions:

• Unplug your unit from the power supply
• Locate the hopper access panel on the bottom of the hopper. Using a Phillips screwdriver. remove the 4-8 screws along the edges of the hopper access panel. Place aside
• From below. locate the connectors among the colored wires. Clip zip-ties with wire cutting pliers. as needed. to expose the wires more clearly. then disconnect the fan’s white connector
• Remove the old fan according to the diagram and install the new fan. Be careful to install the grounding terminal
• Locate the fan’s white connector and connect
• Take hold of the wires through the bottom of the hopper and fold them inside. behind the controller
• After testing. re-install the hopper access panel to the bottom of the hopper. Fasten with the 4-8 screws
